Carbon Reinforcements

Standard Modulus Dry Carbon Fibre Reinforcements.

Deans Website 090


Woven High Strength Carbon Fibre.

CC90P-1200  93 gsm 1k Fibre  Plain Weave Carbon Cloth 1200mm Wide
CC200P-1250  199 gsm 3k Plain Weave Carbon Cloth 1250mm Wide
CC200T-1250 199 gsm 3k  2x2Twill Weave Carbon Cloth 1250mm Wide
CC245T-1250 245 gsm 3k 2x2 Twill Weave Carbon Cloth 1250mm Wide
CC285-T4-1250 285 gsm 3k 4x4 Twill Weave Carbon Cloth 1250mm Wide
CC285-5HS-1000 285 gsm 3k 5 harness Satin Weave Carbon Cloth 1000mm wide
CC285-T-1200 285gsm  6k 2x2 Twill Weave Carbon Cloth  1200mm wide
CC300P-1250 300gsm  6k Plain Weave Carbon Cloth 1250mm Wide
CC400-T-1250  416gsm 2x2 12k Twill Weave Carbon Cloth 12k 1250mm Wide

Woven Tapes

  • CCT232-50        230gsm 3k 50Lm Roll  50mm Wide
  • CCT232-100      230gsm 3k 50Lm Roll  100mm Wide
  • CCT232-150      230gsm 3k 50Lm Roll  150mm Wide



Please call for specialised made to order styles/areal weights of Woven using Std Modulus 1k,3k,6k,12k,24k Fibre.

Minimum Orders may Apply. Widths may vary , please call us to confirm widths available EX Stock

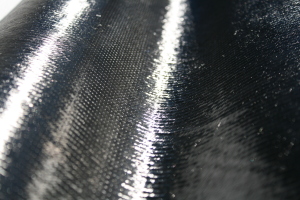

 Stitched Carbon Reinforcements


Deans Website 074

A Wide Range of +/-45 and 0/90 Stitched Materials are available from stock.


Standard Modulus Carbon 12k Stitched +/-45 and +/-30 Double Bias

  • CDB100-1270    12k 100gsm +/30 Stitched Double Bias   1270mm Wide
  • CDB150-1270    12k 150gsm +/45 Stitched Double Bias   1270mm Wide
  • CDB200-1270    12k 200gsm +/45 Stitched Double Bias   1270mm Wide.
  • CDB300-1270    12k 300gsm +/45 Stitched Double Bias   1270mm Wide.
  • CDB400-1270    12k 400gsm +/45 Stitched Double Bias   1270mm Wide.
  • CDB400-1270    24k 400gsm +/45 Stitched Double Bias   1270mm Wide.
  • CDB600-1270    24k 600gsm +/45 Stitched Double Bias   370/1270mm Wide.
  • CDB800-1270    12k 800gsm +/45 Stitched Double Bias   1270mm Wide.

Commercial Grade 24k 0/90 Biaxial.

  • BC500-1270 24k 500gsm                0/90 Stitched Biaxial   1270mm Wide.
  • BC800-1270 50/24k 800gsm         0/90 Stitched Biaxial    1270mm Wide.
  • BC1000-1270 50/ 24k 1000gsm   0/90 Stitched Biaxial    1270mm Wide. (Made to Order)

Secondary Bonding +/-45 Double Bias Tapes.

  • Secondary Boding tapes are supplied to order, allow 3-4 days for cutting.  Available from 70mm to 635mm Wide.

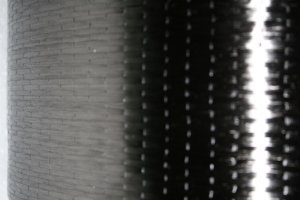

Unidirectional Carbon.

day 2 website pictures 104

Unidirectional Range of Heat Set Weft reinforcements suitable for hand or nip roller wet out available ex stock.

Stitched and Woven unidirectional for infusion are available on a made to order basis, please call to check current availability.


Unidirectional Tapes.

  • UDC200-500   200gsm 12k Std Modulus Unidirectional   tape 500mm Wide.
  • UDC300-150  300gsm 12k Std Modulus Unidirectional    tape 150mm Wide.
  • UDC300-500   300gsm 12k Std Modulus Unidirectional   tape 500mm Wide.
  • UDC450-100   450gsm 24k Std Modulus Unidirectional   tape 100mm Wide.
  • UDC450-150   450gsm 24k Std Modulus Unidirectional   tape 150mm Wide.
  • UDC450-500   450gsm 24k Std Modulus Unidirectional   tape 500mm Wide.


- Please enquire for availability of Stitched Infusible Unidirectional Tapes

- Intermediate and High Modulus Carbon.

- Intermediate and High Modulus Fibre reinforcements are made to order. Minimum order Quantities Apply

- We reserve the right that widths may vary.

Please call us for further technical information and availability.
